SYLVAC Digital Display til D50S til Induktive og Kapacitive længdemålefølere

Varenr.

SYL8041050

EAN

7640125681963

Toldtarif

90178000

Salgskvantum

1

  Download Datablad
Kontakt kundeservice for leveringstid
Tilføj til kurv Forespørg pris

Produktbeskrivelse

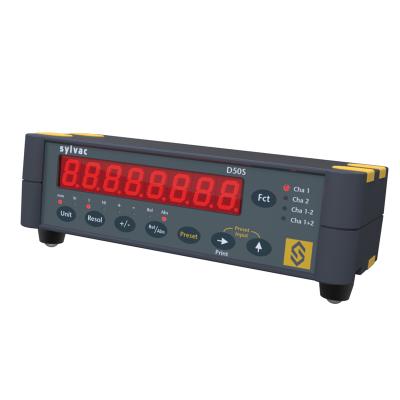

  • Compact and simple display units for capacitive measuring probes
  • Large, bright display

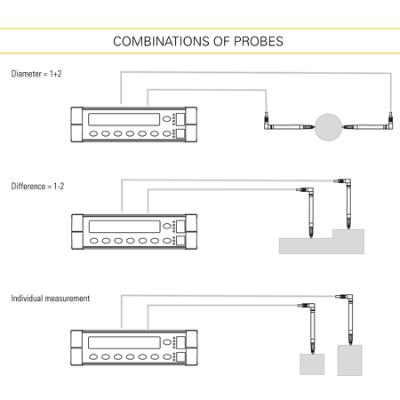

  • 2 probe inputs :
    • - display of channel 1 value
    • - display of channel 2 value
    • - display of the combined value of channel 1 - or + that of channel 2
  • Resolution up to 0.0001 mm (0.1 µm)
  • Available in 2 versions :
    • - D50S Standard
    • - D50S Pro to pair a probe by entering a point-by-point correction (up to 25 points) in order to increase the accuracy of the whole system.

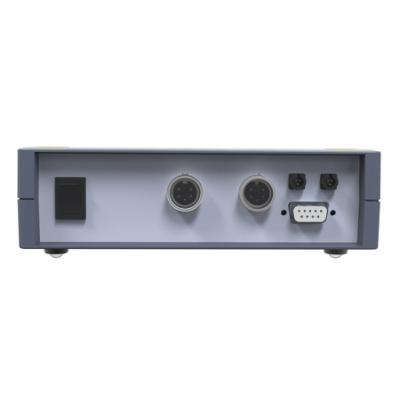

  • Connector for optional pedal 904-4101
  • RS232 data output
  • IP54 liquid-proof front panel for workshop use
Produktspecifikationer
  • Barcode
    7640125681963
  • Brutto vægt
    1,450 kg
  • Netto vægt
    1,450 kg
