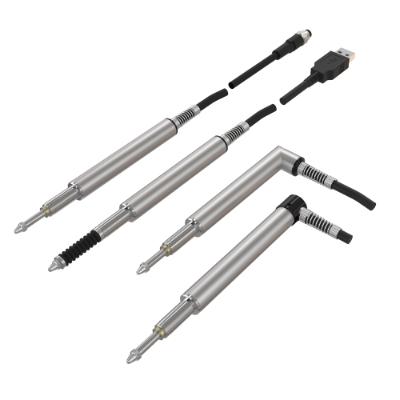

SYLVAC Digital Måletaster P12D 0-12,7 mmx0,01 um med USB tilslutning (High Resolution-801.1012)

Varenr.

SYL8011012

EAN

7640125681352

Toldtarif

8466300000

Salgskvantum

1

Tilføj til kurv Forespørg pris

Produktbeskrivelse

  • High-precision measuring probes with patented measuring system combining inductive and capacitive technologies
  • Absolute system with integrated electronic error correction (no more pairing with the unit or computer) guaranteeing high accuracy over the entire measuring range
  • Extremely robust ball bearing guide guarantees a minimum of 100 million cycles (30 millions with radial load)
  • Stainless steel body Ø 12 mm, fixing diameter 8 h6
  • Measuring range 12.7 mm
  • Available in 3 versions: Standard, Work and Pro
  • Measuring force selectable: low or very low for vertical use only
  • Output signal in direct digital format without the need for a converter
  • Reading speed up to 100 values per second depending on configuration

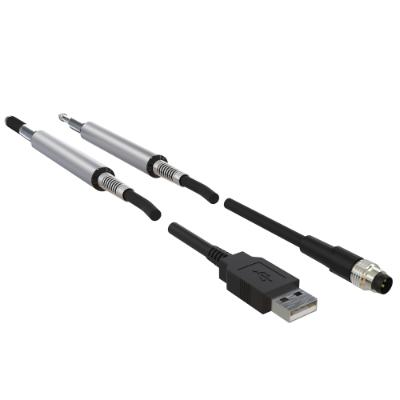

  • Straight cable length 2m with either USB or M8 connector
  • Cable outlet protected by a spring which can be tilted by 90° with the optional accessory 801-5101
  • Protection class IP54
Produktspecifikationer
  • Barcode
    7640125681352
  • Aflæsning
    0,01 µm
  • Data udgang
    USB
  • Fejlgrænse
    0,6 µm
  • Gentagelsesnøjagtighed
    0,08 µm
  • IP Klasse
    IP54
  • Måleområde
    0-12,7 mm
  • Model
    P12D HR USB
  • Nøjagtighed
    0,6 µm
  • SYLVAC varenr.
    801-1012
  • Varemærke
    SYLVAC
  • Brutto vægt
    0,190 kg
  • Netto vægt
    0,190 kg
